Software Design

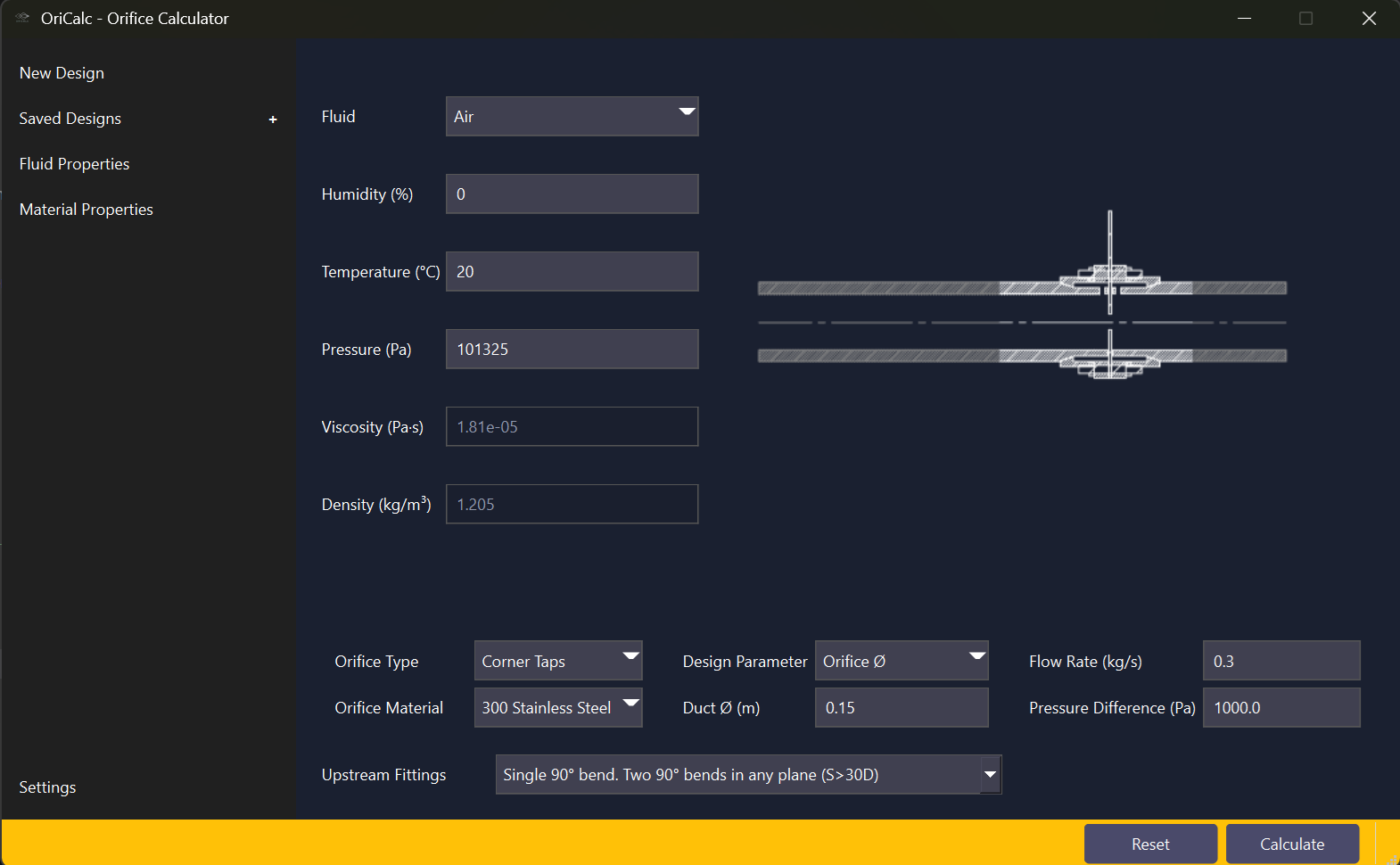

The Orifice Flow Calculator features a modern, intuitive interface designed to provide a smooth and efficient project workflow. Engineers and technicians can easily navigate through the tool’s comprehensive functionalities with minimal learning curve.

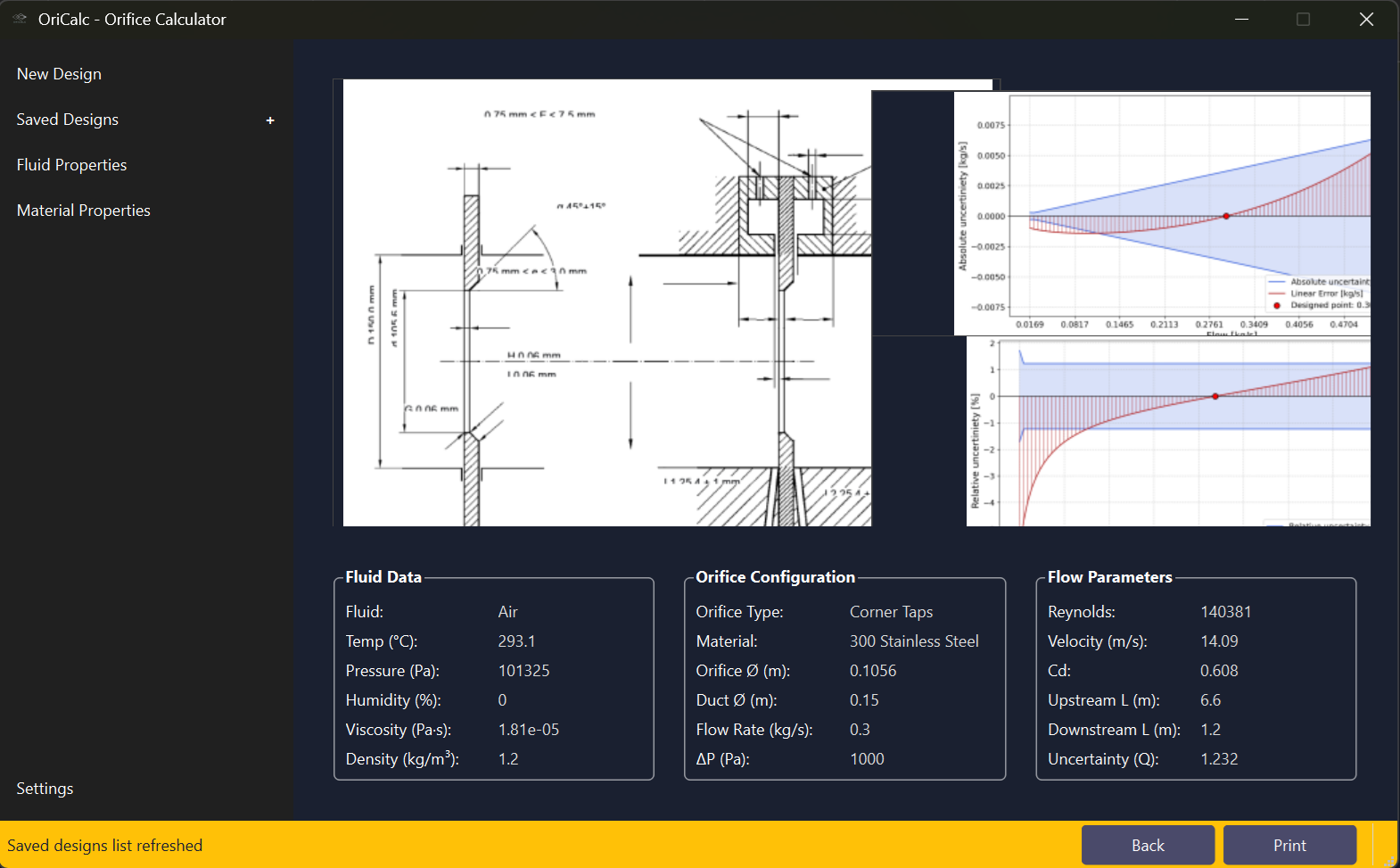

In addition to core orifice calculations, the software provides:

  • A detailed technical diagram of the selected orifice configuration
  • Complete display of all fluid parameters and measurement values
  • Two interactive charts showing flow measurement error across the full operating range

These visual and numerical outputs enable confident decision-making and accurate verification of flow system designs.
